Liryan Spillbund
How does it work?

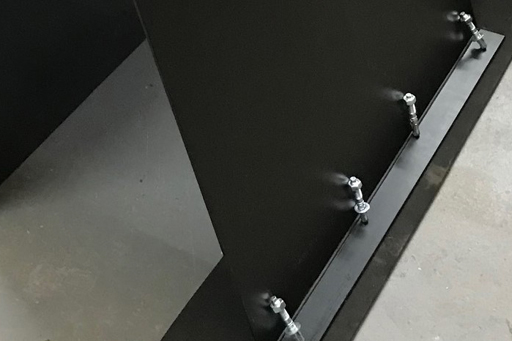

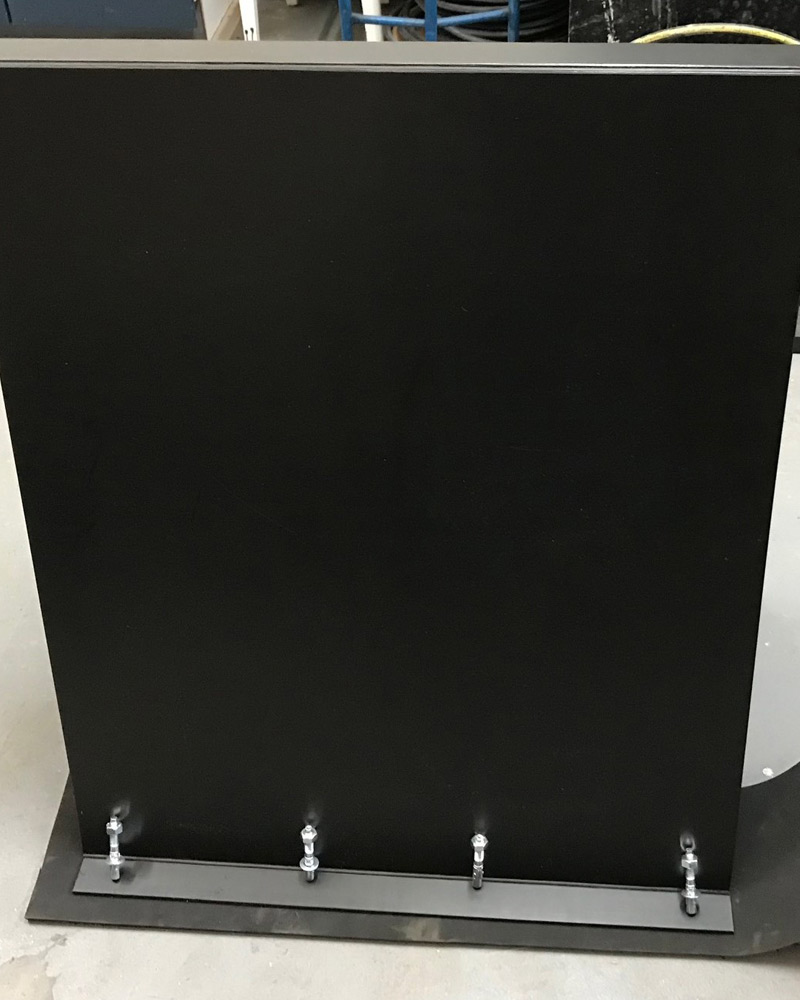

The HDPE Spillbund is formed in Either a square or rectangular shape around the area to be protected, it is then fixed to the existing floor by means of EDPM rubber and 12mm spax fixings making a water tight seal, the bends and couplers have overlay joints which also form a watertight seal, this in essence creates a bunded area
What parts and components are required?

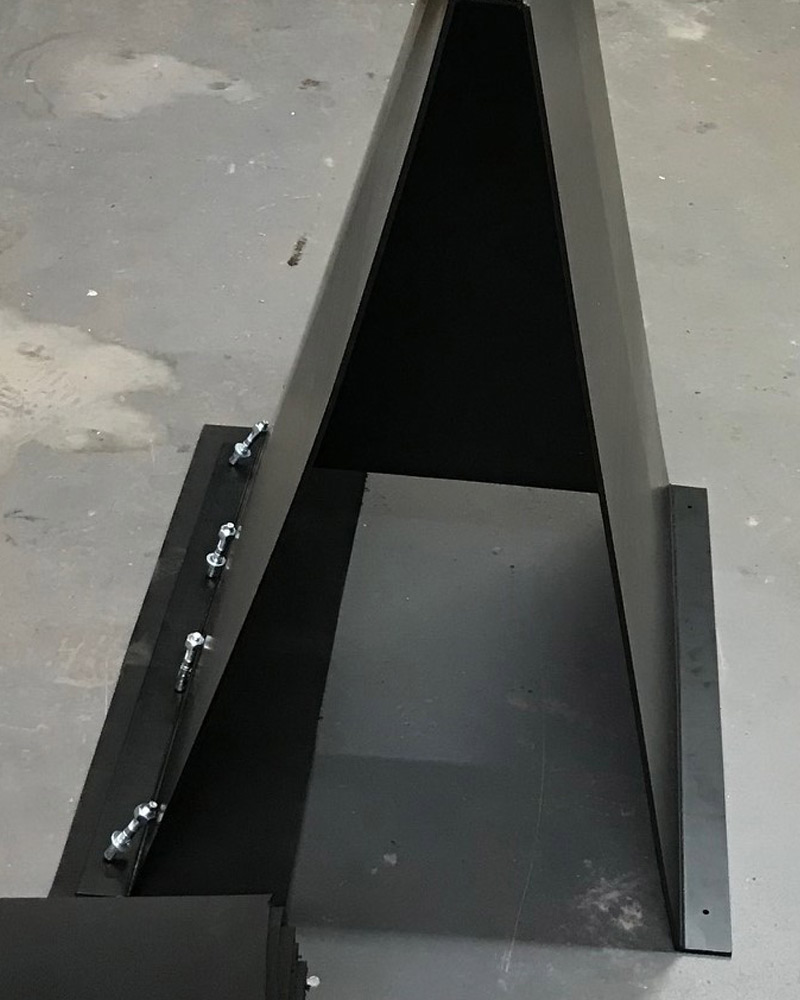

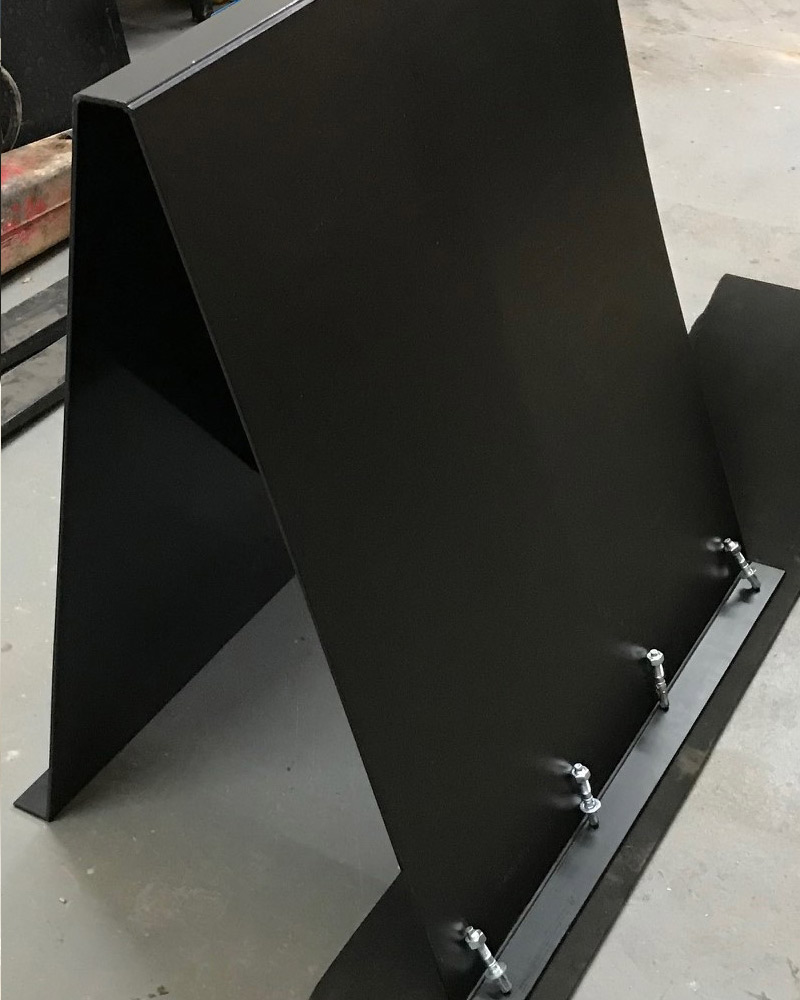

The bund is built up of three main components 1.8mtr Straight lengths, internal/External bends and joint covers, in addition EDPM rubber gaskets, SPAX fixings and construction sealer.
How is it used?
The spillbund will be used in a retrofit scenario around tanks, structures pipework and vessels to contain uncontrolled spills and leaks
What problem does it solve, and how does it solve it?
Its solves the issue of contaminated waste being discharged into the environment by containing the spill or leak.
What are the most important features for the invention?
The invention can be easily retrofitted, its light weight so easy to transport and install, other bunds made from steel fabrication can be heavy and expensive, the HDPE is around 20% cheaper and can be formed in pretty much any size (dependant on the vessels your trying to contain)
What are the most important technical parts ?
Its made from HDPE and is fusion welded, its flexible so can form a watertight seal on imperfect surfaces when used with an EDPM rubber gasket, Industry is crying out for something like this and I don’t believe there is anything else out there on the market.
Advantages
- 20% Cheaper to construct than mild steel equivalent.
- 50% Less time to install reducing Labour cost and site based time
- Extruded and welded in recycled HDPE making the spillbund environmentally friendly.
- Extremely strong and lightweight negating the need for lifting equipment
- Can be formed in any size to accommodate the clients bespoke requirements.
- EDPM rubber gasket will iron out most imperfections along the clients current floor space
- Impermeable to most MSD’s and hydrocarbons
- Guaranteed to provide a 100% water tight seal.
